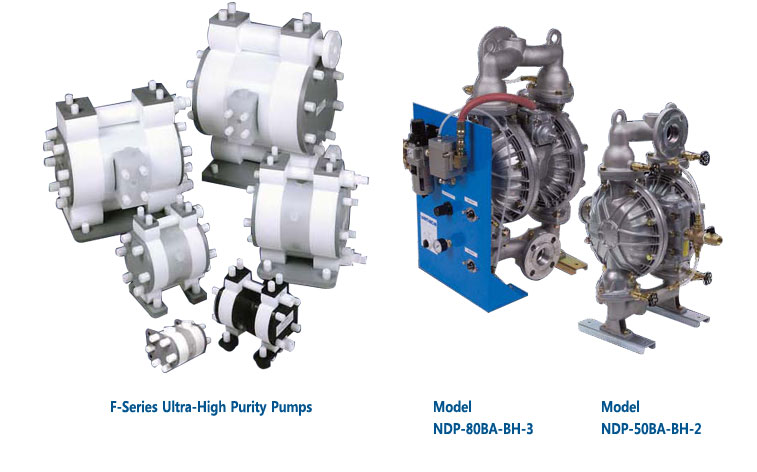

Extensively field proven Yamada F-Series clean room manufactured pumps are specifically designed for the safe and efficient transfer of Ultra High-Purity Process Chemistries. They
provide maximum corrosion resistance, ultra high-purity levels and low particle generation.

Pumps include 100% machined virgin PTFE
diaphragms, liquid chambers and manifolds.
F-Series pumps are available in six sizes
Fluid connections Flaretek®,
ANSI Flange, or FNPT
Flow rate internal shuttle valve or
external timer-based control
Air control 20 to 100 PSI
Temperatures up to 212°F (100°C)


For additional information, please request the Yamada High-Purity PTFE Pumps catalog or visit yamadapump.com.

Yamada has the largest installed base of high-purity pumps in the world!


Yamada Powder Pumps are designed to move bulk powders more effectively throughout your process vs. other unsafe and labor intensive means. These heavy duty pumps will consistently transfer fine-grained, low-bulk density dry powders in a dust-free operation.

Port sizes 1-1/2", 2", or 3"
Construction Aluminum, Cast Iron, or Stainless Steel
Availability Three series of pumps
are offered, dependent
upon requirements.

Also refer to the Powder Pump flyer and Pumpable Powders data sheet.
